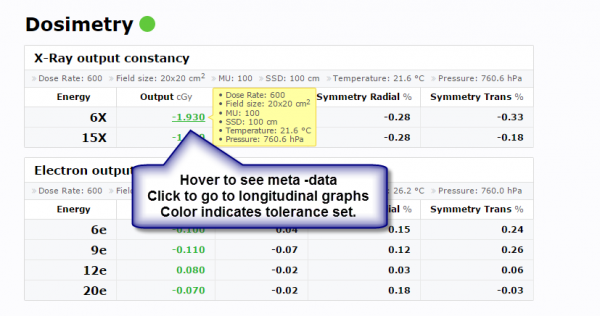

For numerical results, the corresponding longitudinal graphs can be accessed by clicking on the result.

Longitudinal Graphs

Longitudinal graphs for measurements can be accessed by clicking on numerical data within a report or on the graph icon in the Schedules page.

Longitudinal graphs will display data for the following default periods

• Daily Schedules: Last 3 Months
• Weekly Schedules: Last 6 months
• Monthly Schedules: Last 2 years
• Annual Schedules: All data
• Ad-Hoc: All data

The displayed period can be adjusted by changing the from and to dates above the graph.

Clicking on data points will open the associated report.

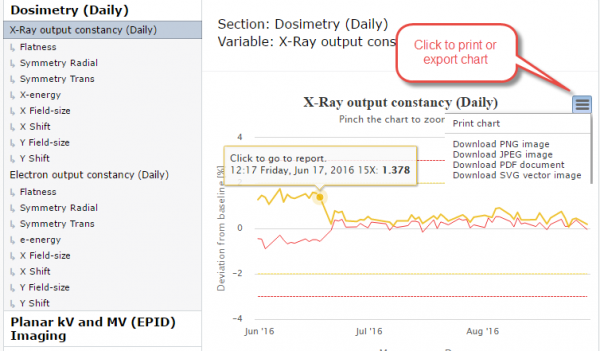

The menu in the upper right allows printing and exporting. The chart may be exported as:

• An image in JPEG, PNG, PDF of SVG format.
• The data can be exported to a CSV file.
• The data table can be displayed below the chart.
